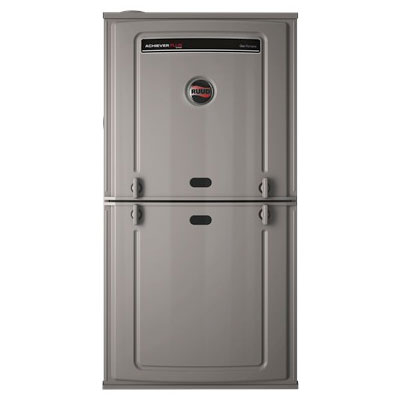

U802V 80% Two Stage Variable Speed Gas Furnace

Enjoy greater comfort and performance thanks to a two-stage operation that offers a more consistent indoor environment – keeping cold spots to a minimum. The two-stage heating design primarily operates on low speed' only temporarily switching to high during peak cold-weather conditions. And a variable-speed fan motor moves at different speeds to efficiently control air flow for a more comfortable environment. The R802V also delivers 80% AFUE' which means 80% of the fuel in your furnace is converted to heat.

  • Multiple configurations Upflow/ horizontal or Downflow
  • Two stages of operation to save energy and maintain optimal comfort level.
  • Variable speed blower motor technology provides ultimate humidity control quieter sound levels and year round energy savings
  • EcoNet enabled exclusively from Ruud that will allow monitoring and controlling of Ruud air conditioning' water heating and pool heating systems— all from a single access point. This will allow products that feature EcoNet technology to work together to ensure optimal performance and energy efficiencies in your home.
  • PlusOne™ Diagnostics 7 Segment LED all units
  • PlusOne™ Ignition System DSI for reliability and longevity
  • Heat exchanger is removable for improved serviceability. Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability.
MODELConfigurationInput MBtuHOutput MBtuHAFUECFMDimensions
HxWxD
Weight
Lbs.
U96VA0402317MSUpflow / Horizontal 42.0 40.3 96.0 1050 34x17.5x29.6 128
U802VA050317MUpflow / Hor. 50.0 40.0 80.0 1250 34x17.5x29 125
U802VA075317MUpflow / Hor. 75.0 60.0 80.0 1650 34x21x29 125
U802VA075421MUpflow / Hor. 75.0 60.0 80.0 1800 34x21x29 140
U802VA100521MUpflow / Hor. 100.0 80.0 80.0 1750 34x21x29 140
U802VA125524MUpflow / Hor. 125.0 100.0 80.0 1900 34x24.5x29 150
U802VA075317ZDownflow 75.0 60.0 80.0 1200 34x17.5x29 115
U802VA075421ZDownflow 75.0 60.0 80.0 1600 34x21x29 115
U802VA100521ZDownflow 100.0 80.0 80.0 2000 34x21x29 120
U802VA125524ZDownflow 125.0 100.0 80.0 2000 34x24.5x29 140

Warranty Information

  • All Parts for 120 months -
  • Heat Exchanger - Limited Lifetime

Available Documents

  • 65-18204.pdf (Upflow / Horizontal, Color, Consumer Literature)
  • 65-18205.pdf (Upflow / Horizontal, Technical Information, Specification Sheet)
  • 65-18206.pdf (Downflow, Color, Consumer Literature)
  • 65-18207.pdf (Downflow, Technical Information, Specification Sheet)
