Features
Up To 30.5 SEER

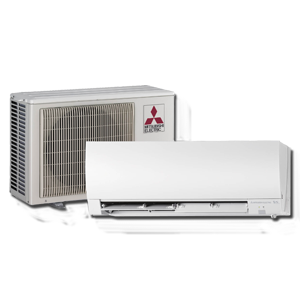

Heat pumps are now a realistic option for any home’ in any climate. The new MSZ-FH family of Hyper-Heating INVERTER residential systems offer year-round’ high-efficiency cooling and heating for a variety of rooms’ including bedrooms’ basements’ sunrooms and more. The slim’ wall-mounted indoor units provide zone comfort control while the INVERTER-driven compressor and electric LEVs offer higher efficiency with controlled power usage.
- Industry-leading efficiency of 33.1 SEER (MSZ-FS06NA).
- Hyper-Heating performance down to -13°F outdoor ambient.
- 100% heating capacity at 5°F outdoor ambient.
- Triple-action filtration: Nano-platinum’ electrostatic ant-allergen enzyme’ and deodorizing filters
- Double-vane air delivery for enhanced circulation.
- i-see Sensor 3D: Infrared human sensing technologies to measure location of human heat signatures. – i-see sensing floor temperature to deliver conditioned air to those areas by double-van airflow.
- NEW multi-function wireless controller.
Specifications
| MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
|---|---|---|---|---|---|---|---|---|---|
| MUZ-FH09NA | Outdoor | MSZ-FH09NA | 0.0 | 0.0 | 0.0 | 0.0 | 1/4 – 3/8 | 21.6×31.5×11.25 | 81 |
| MSZ-FH09NA | Wall | Multi Match | 9.0 | 30.5 | 9.0 | 13.5 | 1/4 – 3/8 | 12.6×36.5×9.2 | 29 |
| MUZ-FH12NA | Outdoor | MSZ-FH12NA | 0.0 | 0.0 | 0.0 | 0.0 | 1/4 – 3/8 | 21.6×31.5×11.25 | 83 |
| MSZ-FH12NA | Wall | Multi Match | 12.0 | 26.1 | 12.0 | 12.5 | 1/4 – 3/8 | 12.6×36.5×9.2 | 29 |
| MUZ-FH15NA | Outdoor | MSZ-FH15NA | 0.0 | 0.0 | 0.0 | 0.0 | 1/4 – 1/2 | 34.6×33.1×13 | 124 |
| MSZ-FH15NA | Wall | Multi Match | 15.0 | 22.0 | 15.0 | 12.0 | 1/4 – 1/2 | 12.6×36.5×9.2 | 29 |
| MUZ-FH18NA | Outdoor | MSZ-FH18NA | 0.0 | 0.0 | 0.0 | 0.0 | 1/4 – 1/2 | 34.6×33.1×13 | 124 |
| MSZ-FH18NA | Wall | Multi-Match | 17.2 | 21.0 | 20.3 | 12.0 | 1/4 – 1/2 | 12.6×36.5×9.2 | 29 |
| MUZ-FS18NA-U1 | Outdoor | 1 | 17.2 | 21.0 | 19.0 | 12.5 | 1/4 – 1/2 | 34.6×33.1×13 | 117 |
| MUZ-FS06NA-U1 | Outdoor | 1 | 6.0 | 33.1 | 8.7 | 13.5 | 1/4 – 3/8 | 21.6×31.5×11.25 | 82 |
| MUZ-FS09NA-U1 | Outdoor | 1 | 9.0 | 30.5 | 9.6 | 13.5 | 1/4 – 3/8 | 21.6×31.5×11.25 | 82 |
| MUZ-FS12NA-U1 | Outdoor | 1 | 12.0 | 26.1 | 12.3 | 12.5 | 1/4 – 3/8 | 21.6×31.5×11.25 | 83 |
| MUZ-FS15NA-U1 | Outdoor | 1 | 14.0 | 22.2 | 16.0 | 12.5 | 1/4 – 1/2 | 34.6×33.1×13 | 117 |
Warranty
Warranty Information
- All Parts for 120 months – 10 Years With Prompt Online Registration
Documents
Available Documents
- View Document (Installation & Operation, Technical Information)
