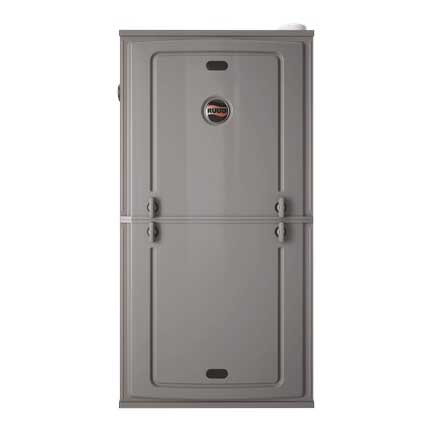

R92P 92% Two Stage Gas Furnace
The Ruud R92P Achiever® Series Gas Furnace was engineered to warm your home in the most reliable' efficient way possible. You get year-round comfort — and a break on your energy bill.
- 92% residential gas furnace CSA certified
- 4 way multi-poise design
- PlusOne™ Diagnostics 7-Segment LED all units
- PlusOne™ Ignition System – DSI for reliability and longevity
- PlusOne™ Water Management System with patented Blocked Drain Sensor
- Heat exchanger is removable for improved serviceability. Aluminized steel primary and stainless steel secondary construction provide maximum corrosion resistance and thermal fatigue reliability.
- Integrated control boards feature dip switches for easy system set up
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| R92PA040 | 4 Way Multiposition | 42.0 | 39.1 | 92.0 | 1121 | 34x17.5x29.6 | 124 |
| R92PA060 | 4 Way Multiposition | 56.0 | 52.1 | 92.0 | 1232 | 34x17.5x29.6 | 128 |
| R92PA070 | 4 Way Multiposition | 70.0 | 65.1 | 92.0 | 1318 | 34x17.5x29.6 | 132 |
| R92PA085 | 4 Way Multiposition | 84.0 | 78.1 | 92.0 | 1742 | 34x21x29.6 | 148 |
| R92PA100 | 4 Way Multiposition | 98.0 | 91.1 | 92.0 | 1782 | 34x21x29.6 | 152 |
| R92PA115 | 4 Way Multiposition | 112.0 | 104.1 | 92.0 | 1934 | 34x24.5x29.6 | 165 |
Warranty Information
- All Parts - 10 Year parts warranty when promptly registered online
- Heat Exchanger for 240 months -
Available Documents
- View Document (Consumer Literature, Customer Information)
- View Document (Consumer Literature, Customer Information)
- View Document (Specification Sheet, Technical Information)
- View Document (Submittal, Technical Information)
