Features

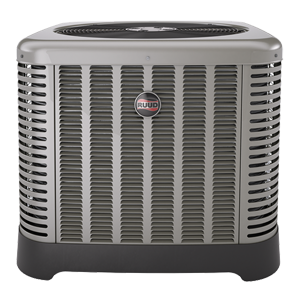

RA16 16 SEER Single Stage Split Air Conditioners
The Ruud Achiever® Series Air Conditioner offers the solid technology and energy-saving performance you’ve come to expect from Ruud-brand products. It’s also quiet, so you won’t give your indoor comfort a second thought.
- New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Powder coat paint system for a long lasting professional finish
- Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability
- Curved louver panels provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- PlusOne™ Expanded Valve Space service valve space – provides a minimum working area of 27-square inches for easier access
- PlusOne™ Triple Service Access 15 in. wide, industry leading corner service access – makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
- Diagnostic service window with two-fastener opening – provides access to the high and low pressure.
Specifications
| MODEL | Cooling Cap. MBtuH |
SEER | Refrigerant Charge Oz. |
Line Size | Dimensions HxWxD |
Weight Lbs. |
|---|---|---|---|---|---|---|
| RA1618A | 18.0 | 15.1 | 82 | 3/8-3/4 | 27×29.75×29.75 | 140 |
| RA1624A | 24.0 | 15.5 | 87 | 3/8-3/4 | 27×33.75×22.75 | 142 |
| RA1630A | 30.0 | 16.0 | 113 | 3/8-3/4 | 27×35.75×35.75 | 152 |
| RA1636A | 36.0 | 16.0 | 108 | 3/8-3/4 | 31×35.75×35.75 | 170 |
| RA1642A | 42.0 | 16.0 | 150 | 3/8-7/8 | 39×35.75×35.75 | 205 |
| RA1648A | 46.5 | 16.0 | 174 | 3/8-7/8 | 45×35.75×35.75 | 225 |
| RA1660A | 56.5 | 15.5 | 201 | 3/8-7/8 | 51×35.75×35.75 | 240 |
