Features

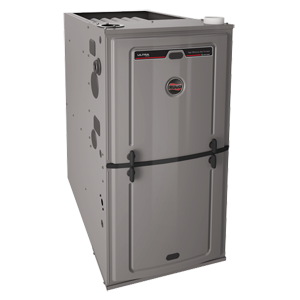

U96V 96% Two Stage Variable Speed Communicating Gas Furnace
Experience reliability for years to come while also saving money and energy with the Ruud U96V Ultra Series Gas Furnace. This high-efficiency’ ENERGY STAR qualified series is engineered so that you don’t have to think about being comfortable in your home – you just are.
- 96% AFUE This means maximum efficiency for you’ and may qualify you for local and/or utility rebates.
- Two-Stage Operation Provides superior comfort by knowing when to switch into high gear’ so there is no need for you to adjust the thermostat.
- Variable-Speed ECM Motor Uses less energy than a single-stage motor. It’s engineered for better dehumidification’ which provides you with better indoor air quality.
- EcoNet The U96V Ultra Series Gas Furnace is an EcoNet-enabled product that is compatible with the advanced’ easy-to-program touch screen EcoNet Control Center – where you can control all Ruud EcoNet enabled appliances.
- PlusOne Water Management System The industry’s first blocked drain sensor will shut off your furnace when a drain is blocked’ preventing water spillage and potential water damage to your home.
- PlusOne Diagnostics our industry-first’ 7-segment LED display that makes service calls quick and easy.
- PlusOne™ Ignition System DSI for reliability and longevity
- 4 way multi-poise design
Specifications
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD |
Weight Lbs. |
|---|---|---|---|---|---|---|---|
| U96VA0602317MS | Upflow / Horizontal | 56.0 | 53.7 | 96.0 | 1050 | 34×17.5×29.6 | 128 |
| U96VA0702317MS | Upflow / Horizontal | 70.0 | 67.2 | 96.0 | 1050 | 34×17.5×29.6 | 132 |
| U96VA0852521MS | Upflow / Horizontal | 84.0 | 72.7 | 96.0 | 1750 | 34x21x29.6 | 147 |
| U96VA1002521MS | Upflow / Horizontal | 98.0 | 94.1 | 96.0 | 1750 | 34x21x29.6 | 152 |
| U96VA0402317MS | Upflow / Horizontal | 42.0 | 40.3 | 96.0 | 1050 | 34×17.5×29.6 | 128 |
| U96VA1152524MS | Upflow / Horizontal | 112.0 | 107.5 | 96.0 | 1750 | 34×24.5×29.6 | 165 |
Warranty
Warranty Information
- All Parts for 120 months – 10 Year replacement & parts warranty when promptly registered online
- Heat Exchanger – Limited Lifetime
