Features

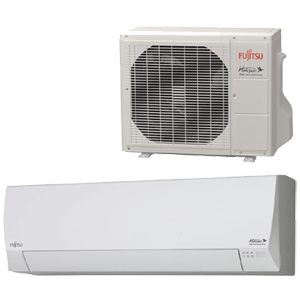

RL2 115V Wall Mount Heat Pump Inverter
Stylish, slim and elegant, these popular wall mounted units are designed for single rooms. Indoor units have a clean, aesthetic design and are small but mighty and shorter in length than competing units, helping them blend into any room. These 16-SEER heat pump systems now feature Inverter technology, environmentally friendly R410A refrigerant, both heating and cooling operation, quiet mode and easy maintenance.
- Wireless Remote Control
- Sleep Timer
- Auto Louver
- Quiet Mode
- Auto Restart/Reset after power failure
- Low Ambient cooling operation
Specifications
| MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
|---|---|---|---|---|---|---|---|---|---|
| ASU9RL2 | Wall Unit | AOU9RL2 | 12.0 | 16.0 | 14.0 | 9.0 | 1/4-3/8 | 10.3×32.3×8.1 | 16 |
| AOU9RL2 | Outdoor Unit | ASU9RL2 | 12.0 | 16.0 | 14.0 | 9.0 | 1/4-3/8 | 21.2x26x11.4 | 64 |
| ASU12RL2 | Wall Unit | AOU12RL2 | 9.0 | 16.0 | 10.0 | 9.0 | 1/4-3/8 | 10.3×32.3×8.1 | 16 |
| AOU12RL2 | Outdoor Unit | ASU12RL2 | 9.0 | 16.0 | 10.0 | 9.0 | 1/4-3/8 | 21.2x26x11.4 | 69 |
Warranty
Warranty Information
- All Parts for 60 months –
- Compressor for 84 months –
Documents
Available Documents
- View Document (Specification Sheet, Technical Information)
- View Document (Owners Manual, Customer Information)
- View Document (2014 Product Guide, Consumer Literature, Customer Information)
- View Document (Installation & Operation, In the Box)
- View Document (Specification Sheet, Technical Information)
