Your Comfort Is Our Business Serving the Twin Cities Since 1978 view all offers

Mitsubishi Multi-Room Heat Pump Systems

Multi-Room Heat Pump Systems

Available in 2-to-1′ 3-to-1′ 4-to-1′ 5-to-1 and 8-to-1 indoor units to one outdoor unit systems with wall’ floor’ ceiling and/or ducted indoor unit styles in a wide range of capacities’ the MXZ multiroom system has the right solution for your needs.

  • Inverter Driven Compressor – Maximizing Energy Savings
  • Quick and Easy Installation
  • Complete Zone Control
  • Multiple Zones– For Ultimate Comfort
  • Advanced Microprocessor Technology
  • Personal Comfort Control– Of Temperature’ Fan Speed and Air Direction
  • Washable Long-Life Anti-Allergen Filters
  • Automatic Cool/Heat Changeover
  • Environmentally Friendly Refrigerant
  • i-see sensor-Detects Temperature Variations

MODEL Type Unit Match or Number of Zones Clg Cap MBtuH SEER Htg Cap MBtuH HSPF Refrigerant Connections Dimensions HxWxD Weight

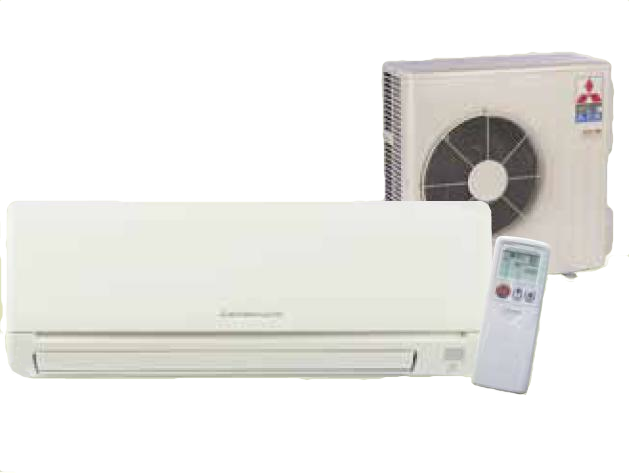

MSZ-A12NA Wall Unit MXZ Series 12.0 0.0 13.6 0.0   11-3/4 x 30-11/16 x 8-1/4 23
MSZ-A15NA Wall Unit MXZ Series 15.0 0.0 18.0 0.0   11-3/4 x 30-11/16 x 8-1/4 23
MSZ-A17NA Wall Unit MXZ Series 16.2 0.0 20.1 0.0   11-3/4 x 30-11/16 x 8-1/4 23
MSZ-A24NA Wall Unit MXZ Series 22.0 0.0 23.2 0.0   11-3/4 x 30-11/16 x 8-1/4 23
MSZ-FD09NA Wall Unit MXZ Series 9.0 0.0 10.9 0.0   21-5/8 x 31-1/2 x 11-1/4 80
MSZ-A09NA Wall Unit MXZ Series 9.0 0.0 10.9 0.0   11-3/4 x 30-11/16 x 8-1/4 23
MSZ-GE09NA Wall Multi Match 9.0 0.0 10.9 0.0 3/8-1/4 11.6×31.4×9.1 22
MSZ-FE09NA Wall Multi Match 9.0 0.0 10.9 0.0 3/8-1/4 11.6×31.5×10.1 27
MSZ-GE12NA Wall Multi Match 12.0 0.0 13.6 0.0 3/8-1/4 11.6×31.4×9.1 22
MSZ-FE12NA Wall Multi Match 12.0 0.0 13.6 0.0 3/8-1/4 11.6×31.5×10.1 27
MSZ-GE15NA Wall Multi Match 18.2 0.0 20.9 10.0 1/2-1/4 11.6×31.4×9.1 22
MSZ-GE18NA Wall Multi Match 18.7 0.0 25.2 10.0 1/2-1/4 11.6×31.4×9.1 22
MSZ-FE18NA Wall Multi Match 18.0 0.0 21.6 0.0 5/8-3/8 12.8×43.3×9.4 37
MSZ-GE24NA Wall Multi Match 22.5 0.0 16.0 0.0 5/8-3/8 12.8×43.3×9.4 37
MSZ-GE06NA Wall MXZ Series 7.2 0.0 8.6 0.0 3/8-1/4 11-5/8 x 31-7/16 x 9-1/8 22
MXZ-2B20NA-1 Outdoor Unit 2 Zone 18.0 0.0 22.0 0.0 3/8-1/4 33.1×27.9×13 130
MXZ-3B24NA Outdoor Unit 3 Zone 22.0 0.0 25.0 0.0 Multiple 35.9×35.4×12.6 150
MXZ-3B30NA Outdoor Unit 3 Zone 28.4 0.0 28.6 0.0 Multiple 35.9×35.4×12.6 150
MXZ-4B36NA Outdoor Unit 4 Zone 36.0 0.0 22.2 0.0 Multiple 35.9×35.4×12.6 153
MXZ-8B48NA Outdoor Unit 8 Zone 48.0 0.0 54.0 0.0 Multiple 53.2×37.4×13.2 278

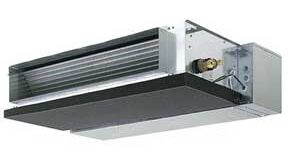

SEZ-KD09NA Ducted Multi Match 9.0 0.0 10.9 0.0   7.9×31.1×27.6 40
SEZ-KD12NA Ducted Multi Match 12.0 0.0 13.6 0.0   7.9×31.1×27.6 46
SEZ-KD15NA Ducted Multi Match 15.0 0.0 18.0 0.0   7.9×31.1×27.6 51
SEZ-KD18NA Ducted Multi Match 17.2 0.0 20.1 0.0   7.9×46.9×27.6 60
PEAD-A24AA     0.0 0.0 0.0 0.0     0
PEAD-A30AA     0.0 0.0 0.0 0.0     0
PEAD-A36AA     0.0 0.0 0.0 0.0     0
PEAD-A42AA     0.0 0.0 0.0 0.0     0

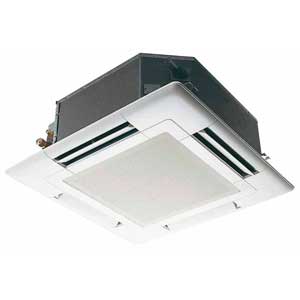

SLZ-KA09NA Cassette Multi Match 8.4 0.0 10.9 0.0 3/8-1/4 9.25×22.4×22.4 36
SLZ-KA12NA Cassette Multi Match 11.1 0.0 13.6 0.0 3/8-1/4 9.25×22.4×22.4 36
SLZ-KA15NA Cassette Multi Match 15.0 0.0 18.0 0.0 1/2-1/4 9.25×22.4×22.4 36
MXZ-5B42NA Outdoor Unit 5 Zone 40.8 0.0 45.2 0.0 Multiple 42.1×35.4×12.6 192

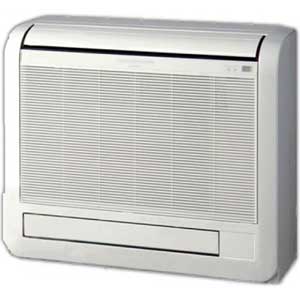

MFZ-KA09NA Floor Multi Match 9.0 0.0 10.9 0.0 3/8-1/4 23.6×27.6×79 32
MFZ-KA12NA Floor Multi Match 12.0 0.0 14.4 0.0 3/8-1/4 23.6×27.6×79 32
MFZ-KA18NA Floor Multi Match 18.0 0.0 21.6 0.0 1/2-1/4 23.6×27.6×79 32

Warranty Information

  • All Parts for 120 months – 10 Years With Prompt Online Registration
  • All Parts for 144 months – 12 Years If Installed By Diamond Contractor and Registered Online

Available Documents

  • View Document (Black & White, Installation & Operation, Mini-Split-Heat Pump)
  • View Document (Line Brochure, Consumer Literature, Customer Information)/li>
  • View Document (2014 Product Catalog , Consumer Literature, Customer Information)
  • View Document (Black & White, Installation & Operation, Mini-Split-Heat Pump)
  • View Document (Owners Manual, Customer Information)
