Features

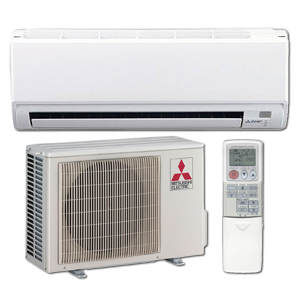

MUZ-FE Series Single Zone Heat Pump Up To 26 SEER
Slim, wall-mounted indoor units provide zone comfort control. INVERTER-driven compressors and electronic LEVs provide higher efficiency with controlled power usage. The indoor unit is powered by the outdoor unit and should a power outage occur, the system is automatically restored when power returns.
- H2i – Hyper Heat Performance offers full capacity heating at 5°F (9 & 12kBTU) and 73% capacity at -13°F (18kBTU)
- Complete individual Zone/Room control for exceptional comfort
- Choice of fan speeds: Quiet, Low, Medium, High, and Super High; Auto fan speed control also included
- Equipped with standard Wireless, IR, Handheld, Remote Controller also offers optional Wireless, RFI-RedLINK™, Full Function, Wall-mount, Remote Controller – MHK1 or Wired Full Function Wall-mount Remote Controller – PAR-21MA
- 9,000 and 12,000 BTU Systems offer i-See® Sensor Technology and Triple Filtration for total indoor comfort
- Hot-start technology – no cold air rush at start-up or re-start after defrost
Specifications
| MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
|---|---|---|---|---|---|---|---|---|---|
| MSZ-FE09NA | Wall | Multi Match | 9.0 | 0.0 | 10.9 | 0.0 | 3/8-1/4 | 11.6×31.5×10.1 | 27 |
| MSZ-FE12NA | Wall | Multi Match | 12.0 | 0.0 | 13.6 | 0.0 | 3/8-1/4 | 11.6×31.5×10.1 | 27 |
| MUZ-FE09NA | Outdoor | 1 | 2.8 | 26.0 | 3.0 | 10.0 | 3/8-1/4 | 21.6×31.5×11.25 | 80 |
| MUZ-FE12NA | Outdoor | 1 | 2.8 | 23.0 | 3.0 | 10.5 | 3/8-1/4 | 21.6×31.5×11.25 | 80 |
| MUZ-FE18NA | Outdoor | 1 | 8.2 | 20.2 | 7.5 | 10.3 | 5/8-3/8 | 34.6×33.1×13 | 119 |
| MSZ-FE18NA | Wall | Multi Match | 18.0 | 0.0 | 21.6 | 0.0 | 5/8-3/8 | 12.8×43.3×9.4 | 37 |
Warranty
Warranty Information
- All Parts for 60 months – Standard
- All Parts for 84 months – If Installed By Diamond Contractor
- Compressor for 84 months –
Documents
Available Documents
- View Document (Black & White, Installation & Operation, Mini-Split-Heat Pump)
- View Document (Line Brochure, Consumer Literature, Customer Information)
- View Document (2014 Product Catalog , Consumer Literature, Customer Information)
- View Document (H2I Hyper Heat, Consumer Literature, Customer Information)
