Features

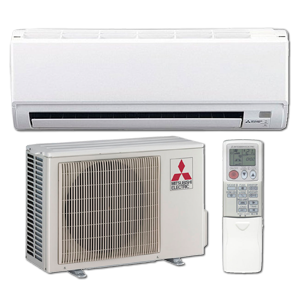

MUZ-GE/D Series Single Zone Heat Pump Up To 21 SEER
Slim’ wall-mounted indoor units provide zone comfort control. INVERTER-driven compressors and electronic LEVs provide higher efficiency with controlled power usage. The indoor unit is powered by the outdoor unit and should a power outage occur’ the system is automatically restored when power returns.
- 14.5–21 SEER’ 8.2–10 HSPF’ INVERTER-driven compressor
- Provides cooling and heating in a wide range of capacities
- Offers a wide vane for a wider angle of airflow’ 150° from left to right (on gE24/D30/D36 models)
- Ideal for applications in bedrooms’ home offices’ living rooms’ dining rooms basements’ kitchens’ guard houses and more
Specifications
| MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
|---|---|---|---|---|---|---|---|---|---|
| MSZ-D30NA | Wall Unit | Multi Match | 30.7 | 0.0 | 32.6 | 0.0 | 5/8-3/8 | 14.4x46x11.6 | 37 |
| MSZ-GE09NA | Wall | Multi Match | 9.0 | 0.0 | 10.9 | 0.0 | 3/8-1/4 | 11.6×31.4×9.1 | 22 |
| MSZ-GE12NA | Wall | Multi Match | 12.0 | 0.0 | 13.6 | 0.0 | 3/8-1/4 | 11.6×31.4×9.1 | 22 |
| MSZ-GE15NA | Wall | Multi Match | 18.2 | 0.0 | 20.9 | 10.0 | 1/2-1/4 | 11.6×31.4×9.1 | 22 |
| MSZ-GE18NA | Wall | Multi Match | 18.7 | 0.0 | 25.2 | 10.0 | 1/2-1/4 | 11.6×31.4×9.1 | 22 |
| MSZ-D36NA | Wall Unit | Multi Match | 33.2 | 0.0 | 35.2 | 0.0 | 5/8-3/8 | 14.4x46x11.6 | 40 |
| MUZ-GE09NA | Outdoor | 1 | 12.2 | 21.0 | 14.1 | 10.0 | 3/8-1/4 | 21.6×31.5×11.25 | 66 |
| MUZ-GE15NA | Outdoor | 1 | 18.2 | 21.0 | 20.9 | 10.0 | 1/2-1/4 | 21.6×31.5×11.25 | 80 |
| MUZ-GE18NA | Outdoor | 1 | 18.7 | 19.2 | 25.2 | 10.0 | 1/2-1/4 | 33.4×33.1×13 | 119 |
| MUZ-GE24NA | Outdoor | 1 | 0.0 | 0.0 | 0.0 | 0.0 | 5/8-3/8 | 33.4×33.1×13 | 119 |
| MUZ-GE12NA | Outdoor | 1 | 13.6 | 20.5 | 18.1 | 10.0 | 3/8-1/4 | 21.6×31.5×11.25 | 77 |
| MSZ-GE24NA | Wall | Multi Match | 22.5 | 0.0 | 16.0 | 0.0 | 5/8-3/8 | 12.8×43.3×9.4 | 37 |
| MUZ-D30NA | Outdoor | 1 | 30.7 | 14.5 | 34.0 | 8.2 | 5/8-3/8 | 33.4×33.1×13 | 141 |
| MUZ-D36NA | Outdoor | 1 | 33.2 | 14.5 | 36.0 | 8.2 | 5/8-3/8 | 33.4×33.1×13 | 141 |
Warranty
Warranty Information
- All Parts for 120 months – 10 Years With Prompt Online Registration
- All Parts for 144 months – 12 Years If Installed By Diamond Contractor and Registered Online
Documents
Available Documents
- View Document (Black & White, Installation & Operation, Mini-Split-Heat Pump)
- View Document (Black & White, Owners Manual, Mini-Split-Heat Pump)
- View Document (Line Brochure, Consumer Literature, Customer Information)
- View Document (2014 Product Catalog , Consumer Literature, Customer Information)
- View Document (Black & White, Installation & Operation, Mini-Split-Heat Pump)
