Features

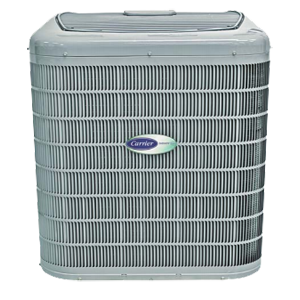

24ANB6 Infinity 16 Split Air Conditioner
Northern climates with less humid, milder summers may not call for the highest degree of efficiency. This model lets you enjoy the benefits of an Infinity system with ENERGY STAR qualified cooling efficiency and quiet operation.
- Up to 16.5 SEER cooling efficiency
- Sound: as low as 66 decibels
- Single-stage operation
- Compressor sound blanket and Silencer System II design
- Filter drier system protection from moisture and contaminants
- WeatherArmor Ultra protection
- Non-ozone depleting Puron refrigerant
Specifications
| MODEL | Cooling Cap. MBtuH |
SEER | Refrigerant Charge Oz. |
Line Size | Dimensions HxWxD |
Weight Lbs. |
|---|---|---|---|---|---|---|
| 24ANB618 | 18.0 | 14.5 | 84 | 29.56×31.19×31.19 | 184 | |
| 24ANB624 | 23.8 | 12.0 | 96 | 29.56×31.19×31.19 | 185 | |
| 24ANB630 | 28.4 | 12.0 | 109 | 32.94×31.19×31.19 | 193 | |
| 24ANB636 | 34.4 | 12.0 | 112 | 30.44x35x35 | 209 | |
| 24ANB642 | 42.0 | 12.0 | 138 | 40.63x35x35 | 261 | |
| 24ANB648 | 46.5 | 12.5 | 208 | 40.63x35x35 | 303 | |
| 24ANB660 | 55.0 | 12.5 | 232 | 47.44x35x35 | 334 |
Warranty
Warranty Information
- All Parts for 120 months –
Documents
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Owners Manual, Customer Information)
- View Document (Installation & Operation, In the Box)
- View Document (Quick Start Guide, In the Box)
