Features

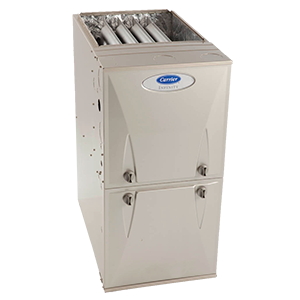

59TN6A Infinity 96
Backed by the intelligent Infinity control and a variable-speed blower, this furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.
- Up to 96.7% AFUE heating efficiency
- Two-stages of heat for economical operation
- Variable-speed, ECM blower motor for ultimate comfort and ultra-quiet operation
- Comfort Heat Technology feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
- Fully insulated cabinet
- Includes air filter cabinet
Specifications
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD |
Weight Lbs. |
|---|---|---|---|---|---|---|---|
| 59TN6A060V17−−14 | 60.0 | 58.0 | 96.3 | 855 | 35x30x17.5 | 140 | |
| 59TN6A080V17−−14 | 80.0 | 78.0 | 96.2 | 1060 | 35x30x17.5 | 150 | |
| 59TN6A080V21−−20 | 80.0 | 78.0 | 96.7 | 1095 | 35x30x21 | 155 | |
| 59TN6A100V21−−22 | 100.0 | 98.0 | 96.1 | 1385 | 35x30x21 | 165 | |
| 59TN6A120V24−−22 | 120.0 | 117.0 | 96.7 | 1640 | 35x30x24.5 | 189 |
warranty
Warranty Information
- All Parts for 120 months –
- Heat Exchanger –
Documents
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Owners Manual, Customer Information)
- View Document (Quick Start Guide, In the Box)
