Features

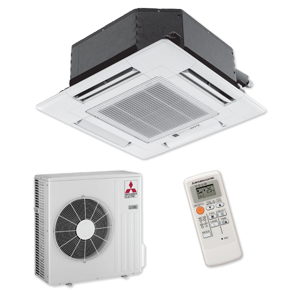

SLZ/SUZ Series Single Zone Ceiling Cassette Heat Pump
SLZ 2×2 ceiling-recessed cassette units offer a wide airflow pattern for better air distribution in a less obtrusive style. Install SLZ in a hard ceiling (with an access panel for servicing) or in 2×2 drop ceiling.
- INVERTER-driven compressor
- Provides cooling and heating in a wide range of capacities
- SLZ/SUZ-KA09/12/15 1:1 systems are ENERgy STAR® rated
- Ventilation air knockouts
- Built-in condensate lift mechanism (up to 20″)
- Offers a 2, 3, or 4 way airflow pattern
Specifications
| MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
|---|---|---|---|---|---|---|---|---|---|
| SUZ-KA09NA | Outdoor | 1 | 3.1 | 15.0 | 3.1 | 9.6 | 3/8-1/4 | 21.6×31.5×11.25 | 66 |
| SUZ-KA12NA | Outdoor | 1 | 3.4 | 15.4 | 3.1 | 9.6 | 3/8-1/4 | 21.6×31.5×11.25 | 77 |
| SUZ-KA15NA | Outdoor | 1 | 3.1 | 16.0 | 3.1 | 9.6 | 1/2-1/4 | 21.6×31.5×11.25 | 80 |
| SLZ-KA09NA | Cassette | Multi Match | 8.4 | 0.0 | 10.9 | 0.0 | 3/8-1/4 | 9.25×22.4×22.4 | 36 |
| SLZ-KA12NA | Cassette | Multi Match | 11.1 | 0.0 | 13.6 | 0.0 | 3/8-1/4 | 9.25×22.4×22.4 | 36 |
| SLZ-KA15NA | Cassette | Multi Match | 15.0 | 0.0 | 18.0 | 0.0 | 1/2-1/4 | 9.25×22.4×22.4 | 36 |
Warranty
Warranty Information
- All Parts for 60 months –
- Compressor for 84 months –
Documents
Available Documents
- View Document (Line Brochure, Consumer Literature, Customer Information)
- View Document (Installation & Operation, In the Box)
- View Document (2014 Product Catalog , Consumer Literature, Customer Information)
- View Document (Owners Manual, Customer Information)
